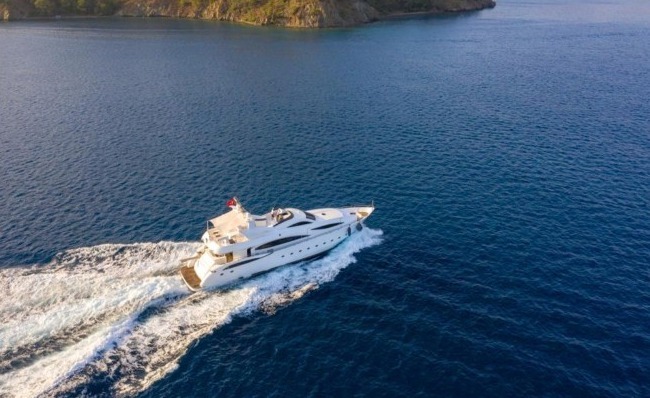

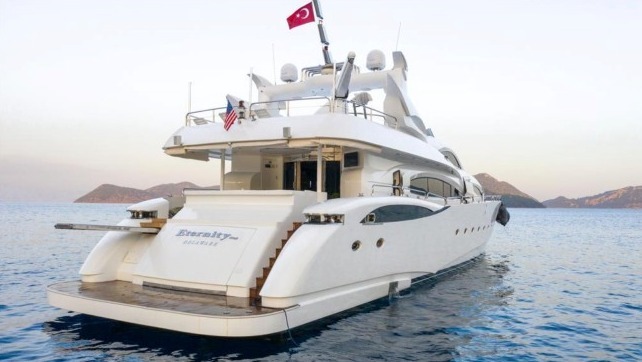

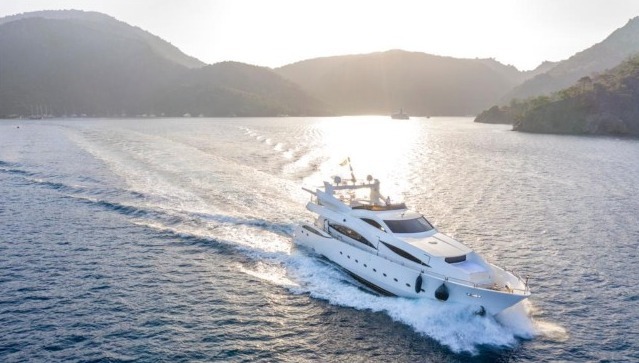

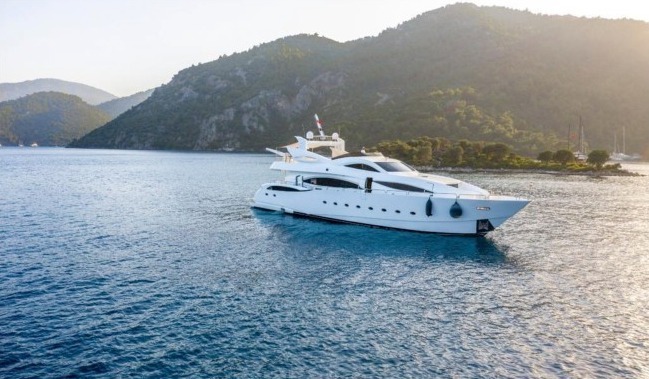

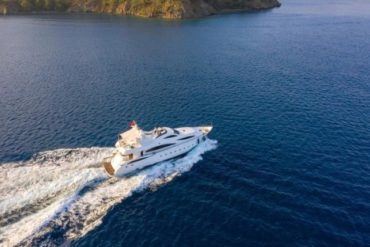

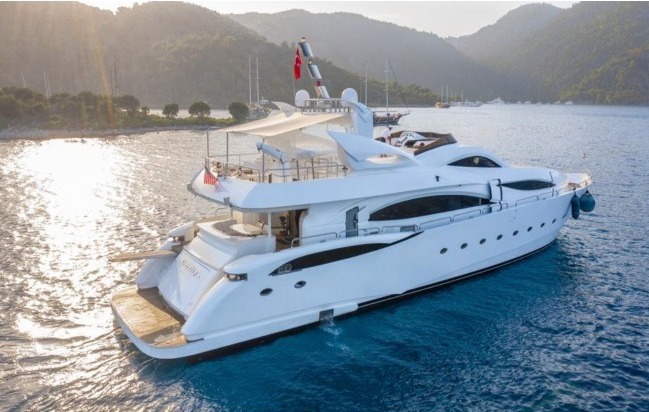

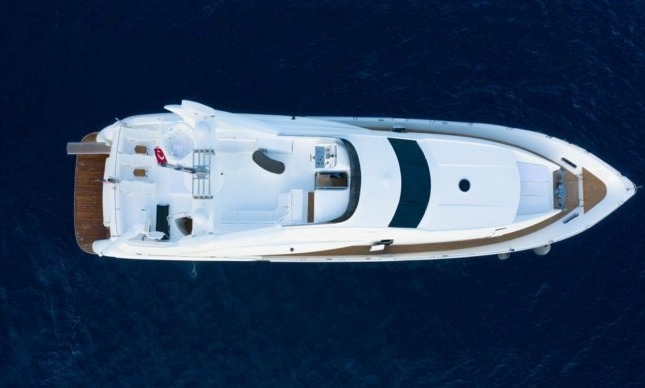

M/Y 02

Description

MAIN SPECIFICATION
Length:
37,60m / 121,18
Beam: 7.20 m / 23’7’’
Builder: SUN YATCILIK Turkey
Year: 2006
Refit: 2019
Construction: Wood laminated Designer: SUN YATCILIK Turkey
Classification: Flag:
USA
Main Engines: 2 X M A N 1.500 HP Range: 500 nm
Max Speed: 20 knots
Cruising Speed: 15 knots
Guests:
12 guests in 5 staterooms
Crew: 4 crew in 3 cabins

Location: Turkey
DIMENSIONS
Length overall: 37.60m / 121’18’’
Waterline length: 31.50 m / 101’15’’
Beam:
7.20 m / 23’7’’
Draft: 2.25 m / 6’81’’
Displacement: 165 tons
Gross tonnage: 146 tons
Net tonnage:
57 tons
CONSTRUCTION
Hull: Wooden laminated
Superstructure: Wooden Laminated
Decks: Teak
Naval Architect: SUN YATCILIK
External Designer: SUN YATCILIK
İnternal Designer:
SUN YATCILIK
CLASSIFICATION
Class: No
MCA:
No
Other:
No
PERFORMANCE
Maximum speed: 20 knots
Cruising speed: 15 knots
Consumption (approx):
500 lph @ 15 knots approx
Range: 600 nm @ 15 knots
MACHINERY
Engines: 2 X M A N 1.500HP
Engine hours:
P.1.053h / S.1..056h (02.09.2016)
Generators: 2 X Vaster Berke 30KW
Generator hours:
P.2.432h / S.5.422h (02.09.2016)
STEERING & PROPULSION
Steering: Electro Hydraulic
Propellers: 2 X 4 Blades
Gearbox:
ZF
AUXILIARY EÇUIPMENT
Bow thruster: Electro Hydraulic
Stem thruster: Electro Hydraulic
Water maker: Hydromar 1001/h
Stabilizers: No
Fuel separator: Regular Racor Filters
Air-conditioning: Marine Cold 120 btu
Waste water treatment:
No
Oily water separator: No
Toilet system: Central Vacuum System
Boilers: 2 X 60lit X 220 V
TANKAGE (approximate)
Fuel: 7.000 /
Lubrication oil: No
Dirty lube oil: No
Fresh water:
2.000/
Grey water: 500
Black water: 1.000
ELECTRICAL SYSTEM
Voltage: 220 V/ 24v
Freguency:

50Hz
Shore power converter: 380V/220V 80A
Inverter:

YES
Batteries:

6 X 160Ah Service,4 X 120Ah Engines, 2 X 100Ah Genset

4 X 160Ah Windlasses
NAVIGATION EÇUIPMENT
Magnetic compass:

Yes
Gyro compass:

No
Log:

Raymarine
Depth sounder:

Raymarine
Sonar:

No
Autopilot:

Raymarine
Radar:

Raymarine
Electronic chart system:

Raymarine
GPS:

Raymarine
Instrumentation system

Raymarine
(wind speed & direction):
COMMUNICATION AND SATELLITE EÇUIPMENT
Inmarsat: No
Navtex: No
Fleet 77:
No
Broadband Intemet: Yes
GSM: No
SSB radio: No
VHF: ICOM
Mini M:

No
Telephone exchange: No
VHF hand held radio: ICOM
Printer / fax: Yes
ENTERTAINMENT EÇUIPMENT
TW DVD: SONY
Satellite:

SAT TV
Music system: SONY
DOMESTIC APPLIANCES, EÇUIPMENT AND LAUNDRY
Refrigerator: 2 X SIEMENS
Freezer:
1 X SIEMENS
Oven: 1 X SIEMENS
Stove: 1 X SIEMENS CERAMİC
Microwave:

1 X SIEMENS
Icemaker:

1 FREEGO
Dumb-waiter:

No
Dishwasher:

1 X SIEMENS
Washing machine:

1 X SIEMENS
Dryer:

1 X SIEMENS
ACCOMMODATION
12 guestes in 5 staterooms and 4 crew in 3 cabins
Saloon Text

Other Living Areas Text
Master Stateroom Text
VIP Stateroom Text
Guest stateroom Text
Crew Accommodation Text

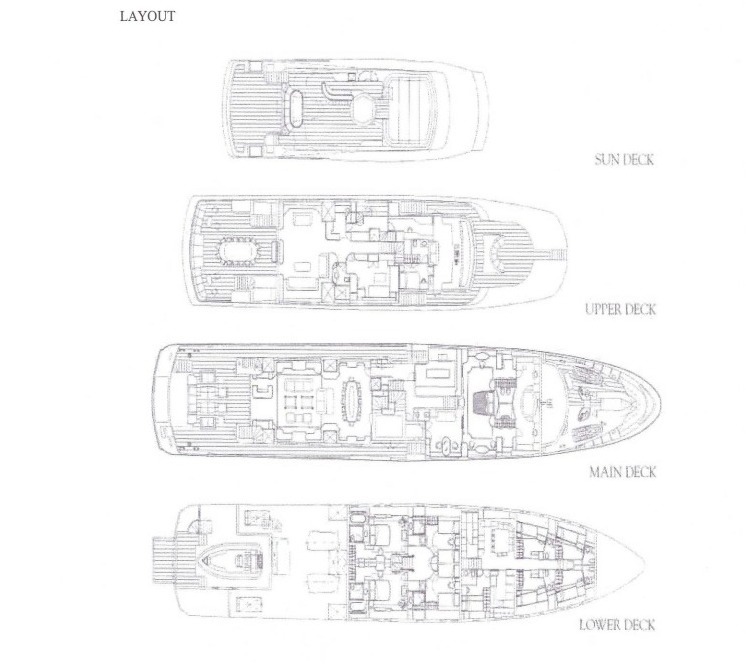

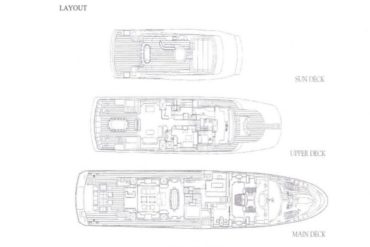

DECK ARRANGEMENT
Text
DECK EOUIPMENT
Anchors & chain: 2 X 80kg / 1 X 80m 1 X 150m X 14mm
Cranes: 1 X OPACMARE 500kg
Windlass: LOFRANS 3.000W
Passarelle: OPACMARE 4m
Bathing ladder: Yes
Bimini top: Yes
Stern capstans: 2 X LOFRANS X 2.000W
TENDER AND TOYS
Tenders:

1 X Zodiac 3.80m / YAMAHA 40hp

Jet ski YAMAHA 200 hp
Toys:

No
Dive eguipment:
No
SAFETY & SECURITY
EPIRB:

No
Life rafts:

1 X 12 Pax
Life jackets:

16 Adults & 4 Children
Fire-fighting eguipment:
Central Foam System in Engine Room & CO2 X 6kg
Ship alarms:

No
Intruder alarms:

No
Bilge & fire pumps:

220V & 24V
Searchlight:

Yes
Security cameras:

Yes
Ships safes:

Yes
