11,68
4
FLAG British
YEAR BUİLT 2005 LENGTH 11.68 m
BEAM 6.3 m DRAFT 0.98 m

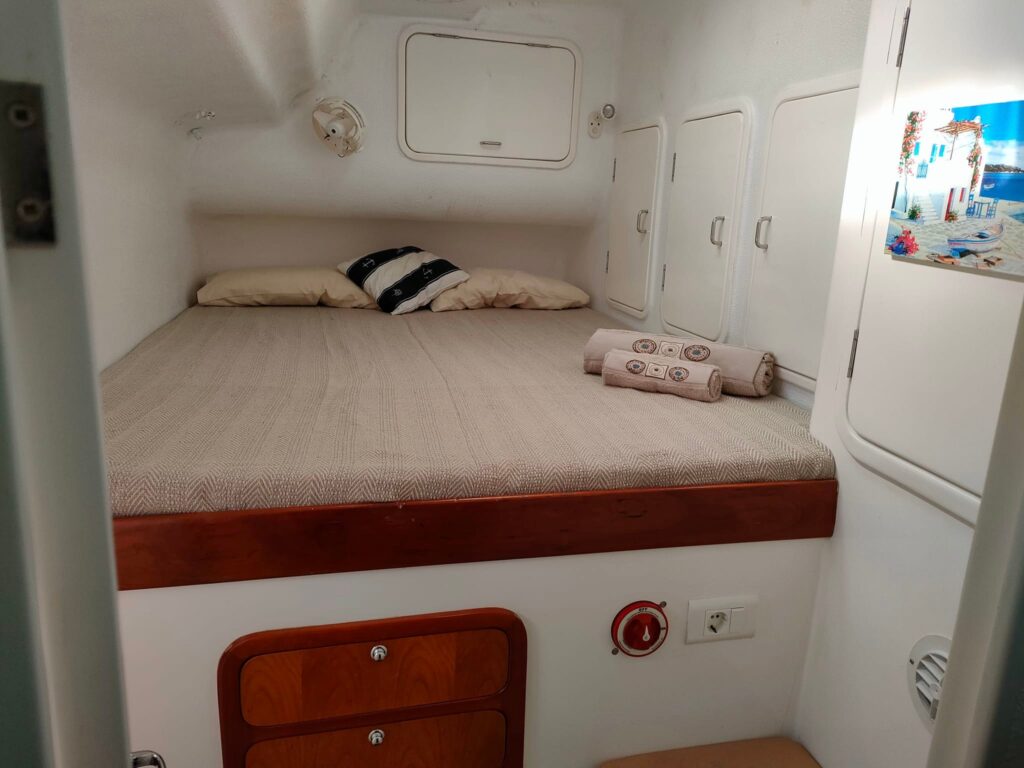

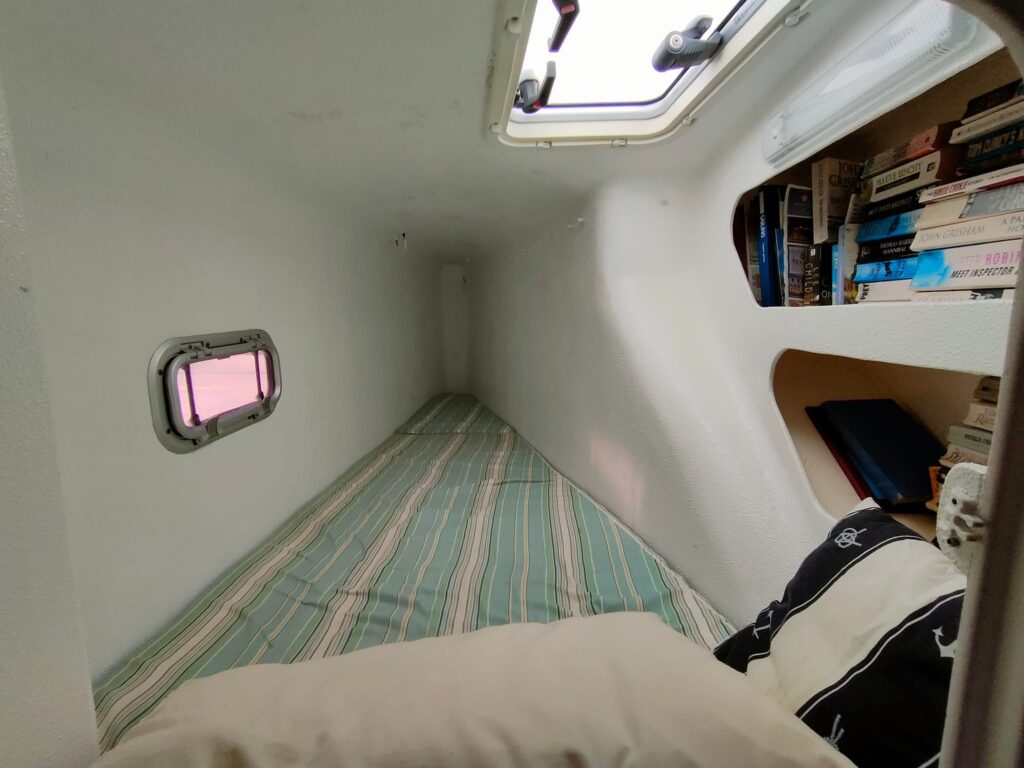

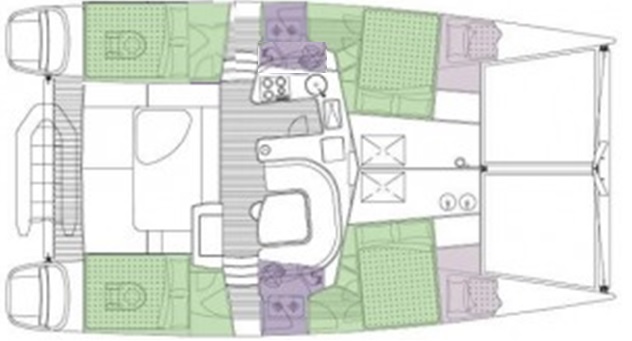

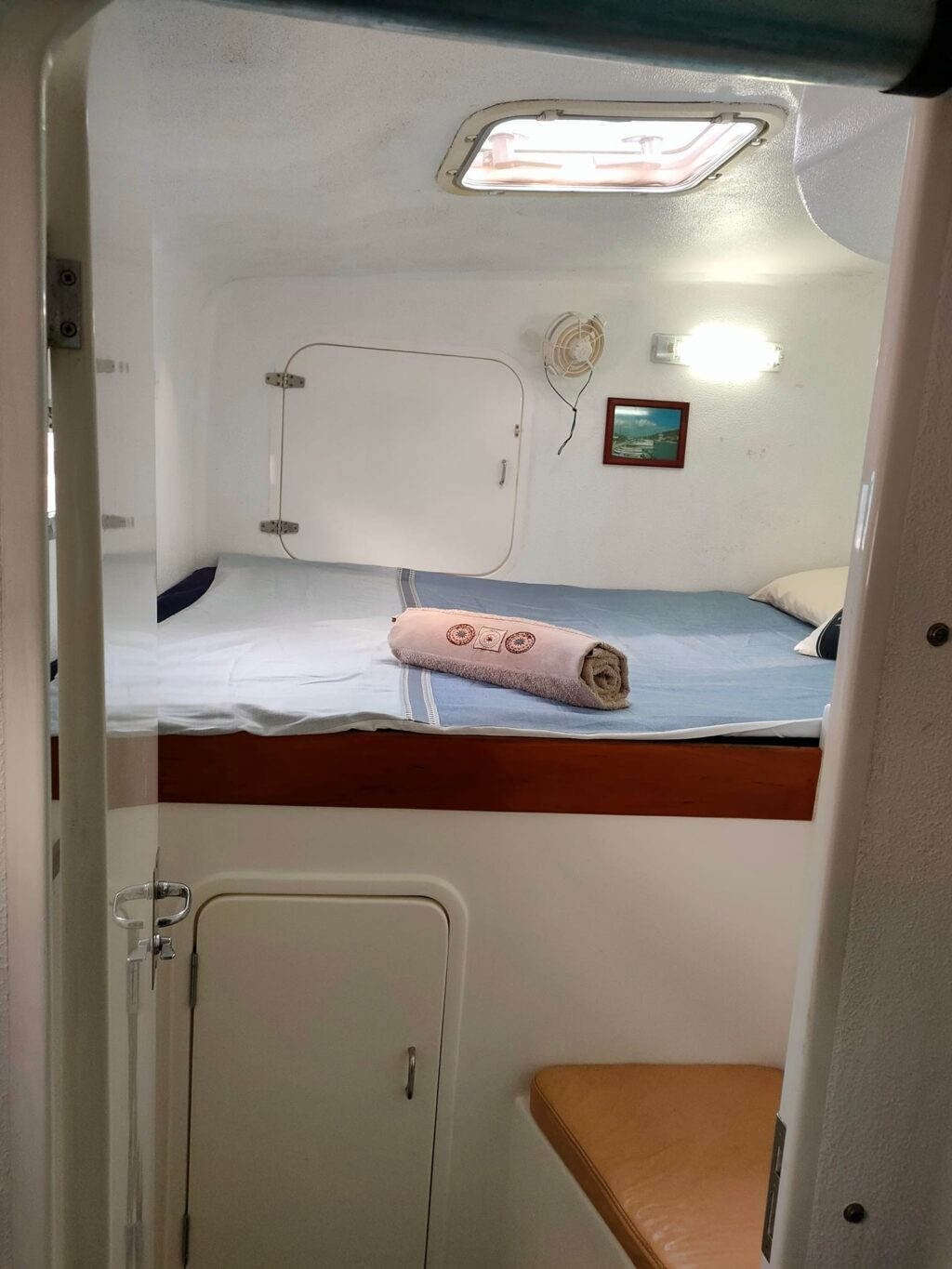

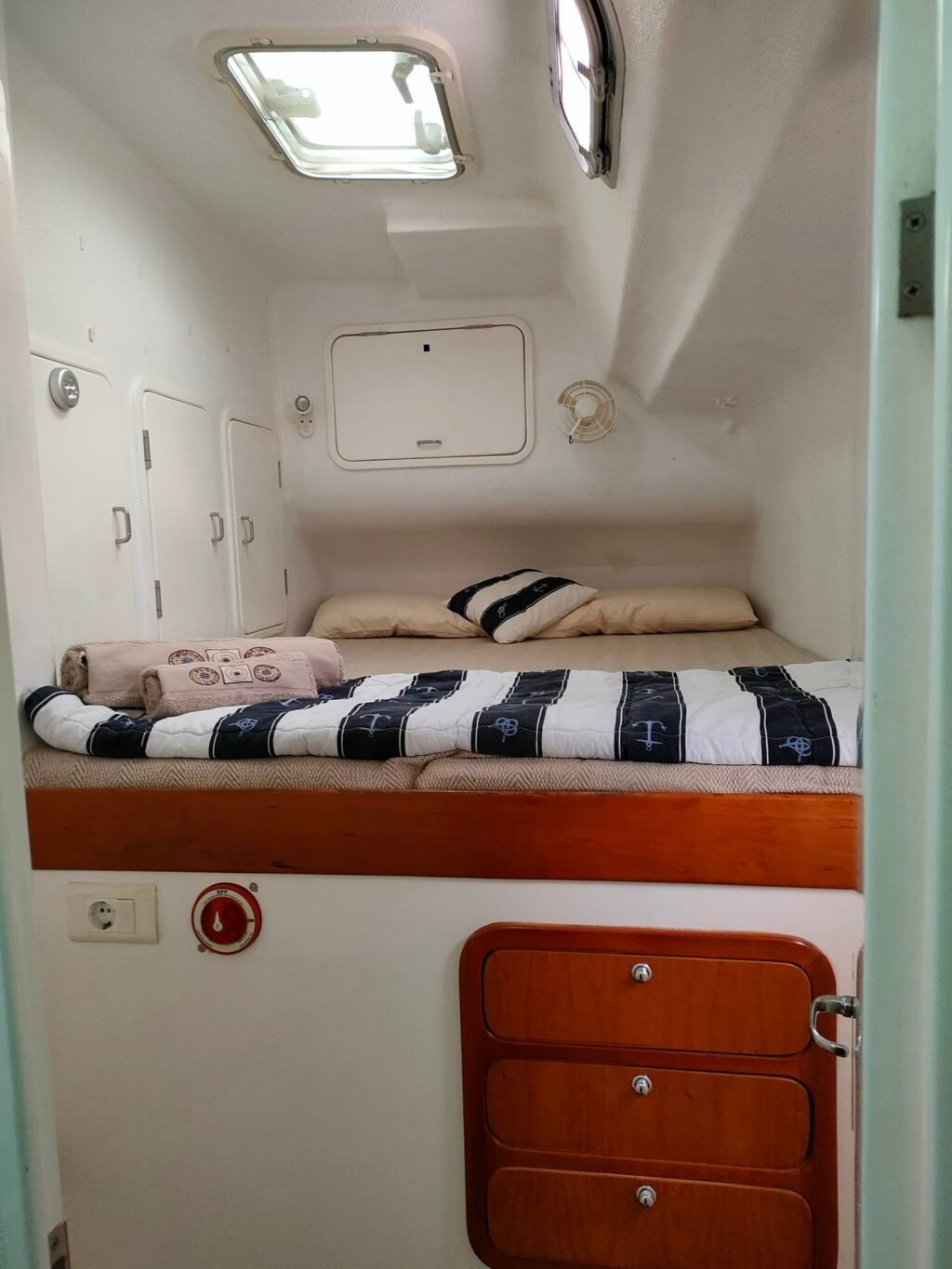

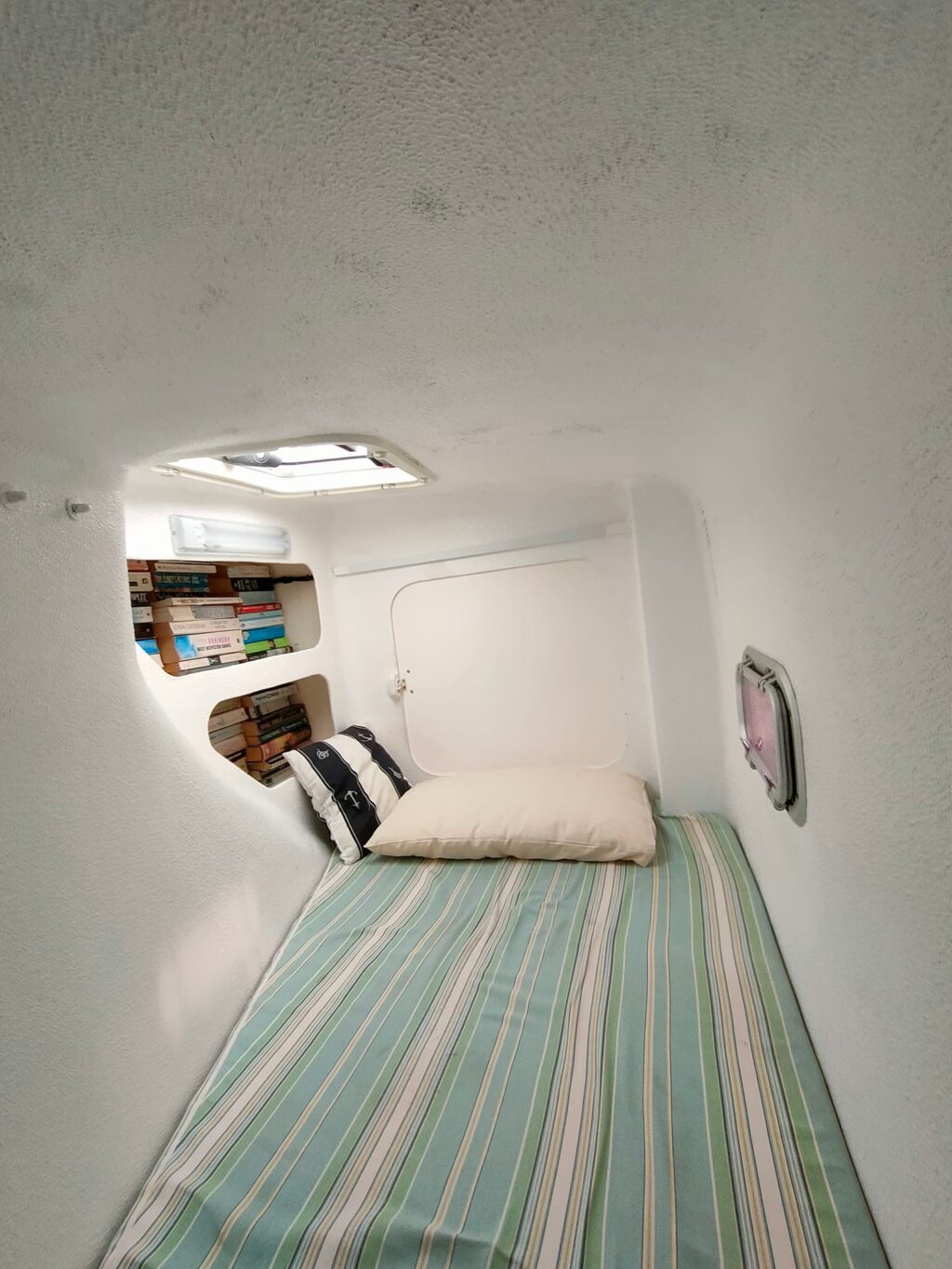

NUMBER OF CABİNS 4 NUMBER OF BERTHS 8
HULL MATERİAL GRP (Fiber Glass) DECK MATERİAL GRP (Fiber Glass)
Specification
L.W.L 11.68 m L.O.D 11.88 m
TONNAGE / DİSPLACEMENT 6000 kg DESİGN Alex Simonis
SUPER STRUCTURE MATERİAL GRP using multi layers of Quadraxial glass roving, isophthalic and orthophthalic polyester resin
– Closed cell PVC foam core, vacuum bonded
– Marine ply and balsa core on critical structure
– Reinforced fitting areas for rudders, keels, mast, chain plates and deck fittings
– Forward watertight compartments

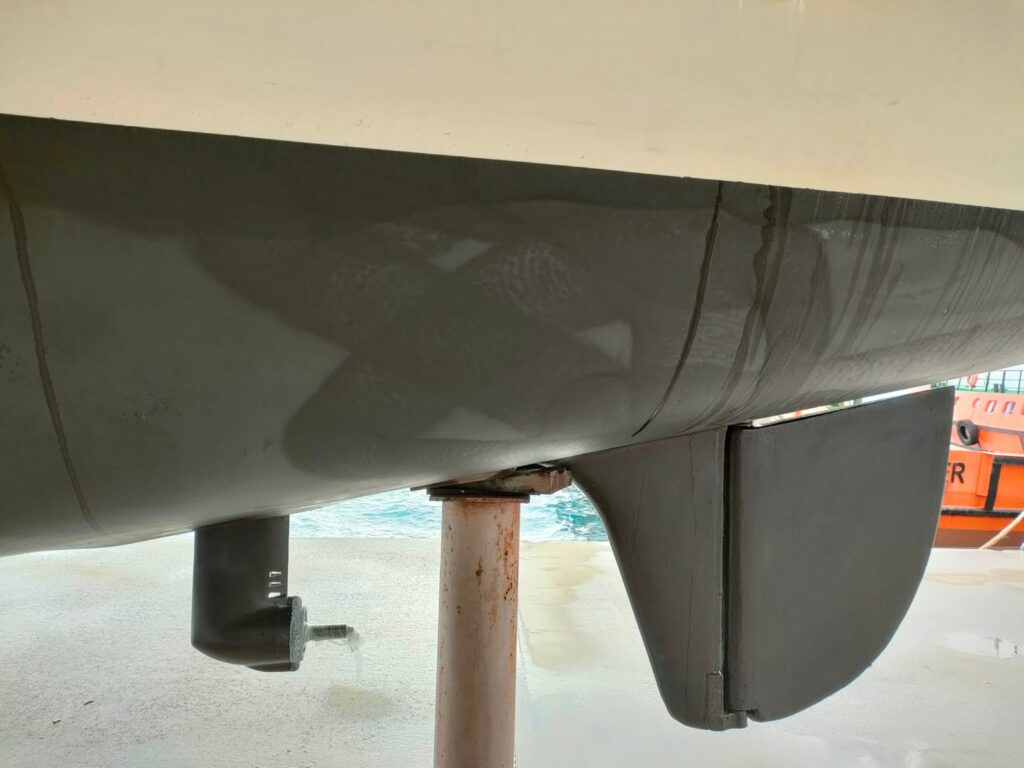

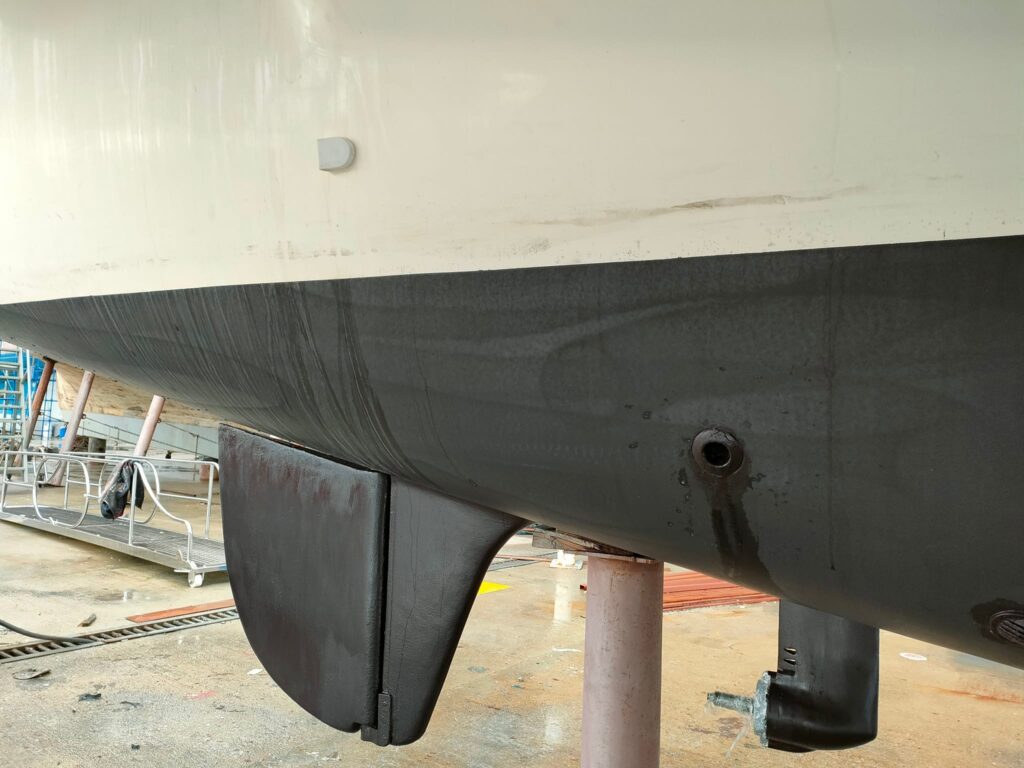

– Skeg supported rudders

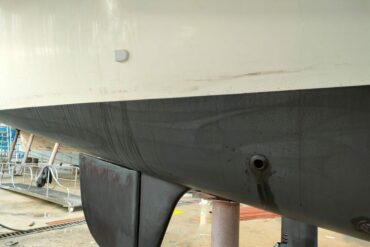

– Reinforced low aspect keels reinforced for beaching
– Antifouling over epoxy based osmosis barrier
– Stainless steel, grade 316 deck fittings
– Bow pulpits + pushpits with 4 GRP seats
– Stanchions and stanchion bases
– Double guard wires
– Teak walkway at stern

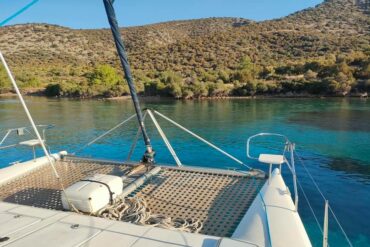

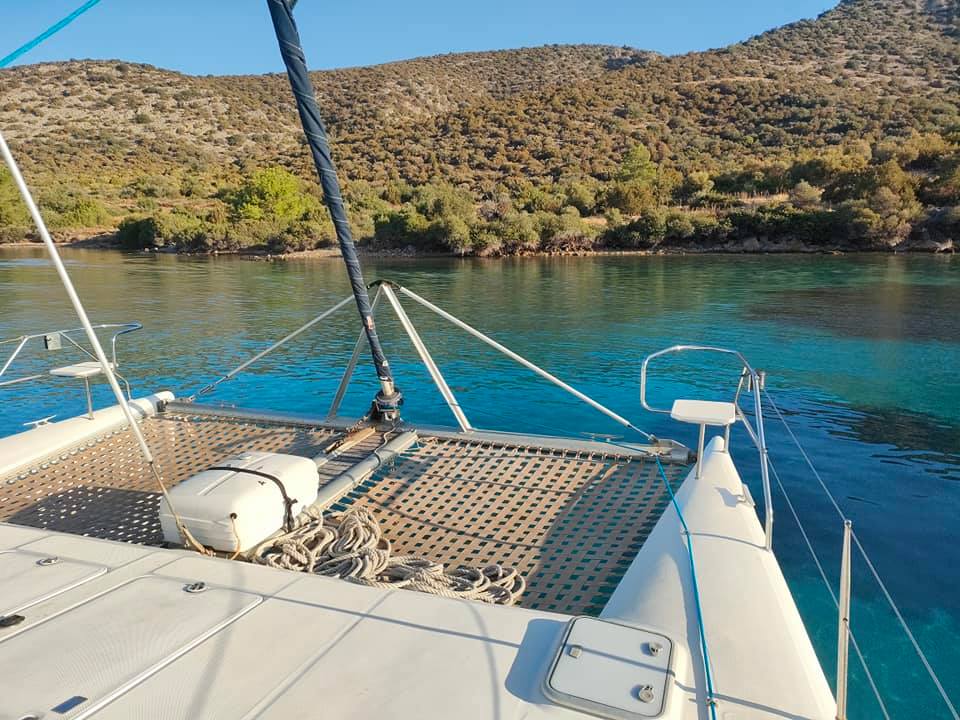

– Teak walkway between UV protected trampolines
– Anti-fouled August 2021
Tankage
FUEL CAPACİTY 500 lt WATER CAPACİTY 500 lt
HOLDİNG TANKS 120 lt
Engine and Machinery
ENGİNE TYPE 2 x Yanmar 29hp 3YM30 ENGİNE POWER 60 hp
ENGİNE DATE 2005 NO OF HOURS 2000 hr
CONSUMPTİON 2.3lt per engine @6knts SPEED 6 knots
WATER MAKER Custom water maker (standard off the shelf parts) powered by Karcher K2 (with spare onboard) with spare filters, membranes, casings, fittings & pipes – New Oct 2021. BATTERY CHARGER Victron Multiplus II (2021)
BATTERİES Trojan T105 house batteries (6x6V 225ah, configured as 12v 675ah) + 2 x engine starter batteries (2019) GENERATOR Loncin LCI3500 3.5kw 220v inverter generator (2021)
INVERTOR Victron Multiplus II (2021)
